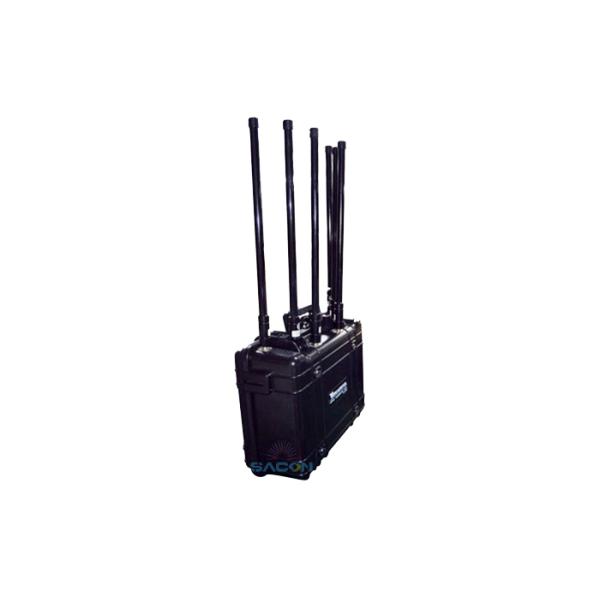

90W High Power Backpack Jammer 6 Channels Portable IED Jammer for Forces and SWAT Teams

Brand Name : Sacontelecom

Model Number : SA-006M-A

Certification : ISO9001

Place of Origin : China

MOQ : 3pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,Paypal

Supply Ability : 100pcs/month

Delivery Time : 15 work days after receive payment

Packaging Details : Wooden Case with PE Foam

Product Name : 90w Backpack Signal Jammer

Application : Anti Terror Units, Forces, SWAT Teams

Antenna : High Gain Omni Directional Antenna

Jamming Range : 20 - 100meters, Depend On Signal Strength

Output Power : 90w

Weight : 15kg

Contact Now

Max 90w High Power Backpack Jammer 6 Channels For Forces / SWAT Teams
Product Overview

SA-006M-A is a state-of-the-art efficient cellular/satellite mobile phone jammer designed for bomb disposal security applications, including troop marching and field operations.

The jammer is constructed to block continuously and simultaneously up to five frequency bands. Its smart active cooling system enables non-stop use even in very hard climatic and weather conditions.

The Backpack Jammer SA-006M-A is a portable IED Jammer or Bomb Jammer built into a backpack. It is designed to be taken into hostile territory for defensive RF Jamming of Radio Controlled Improvised Explosive Devices (RCIEDs) used as weapons by terrorists, insurgents, and criminals. IED Jamming using RF Jamming technology is vital for protective forces, government officials, diplomatic representatives, EOD teams, and Bomb Squad technicians.

Key Features
  • High-power multi-band jammer with Frequency Scan technology
  • Modular construction for easy maintenance, repair and upgrade
  • Jamming up to 6 different jamming modules
  • Max 90 watts total RF output power
  • AC mains or DC power operation
  • Systematic Smart Cooling System
  • General design meets operational requirements
  • Different frequency bands can be controlled independently by single switches
  • Power Amplifiers protection design ensures working reliability
  • Customizable frequencies including AM, FM Radio, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, LTE 700, LTE 800, LTE 2300, LTE 2600, GPS, Galileo, Compass, Glonass, WIFI, WIMAX, UAV, drone, etc.
Technical Specifications
Output Interface Description Shield Band of Frequency RF Output Power (±1dBm)
Optional LOJACK 168-178 MHz 41.7dBm
CH2 WCDMA 3G 2110-2170 MHz 41.7dBm
CH3 GSM900 925-960 MHz 41.7dBm
CH4 GSM1800 / PCS 1900 1805-1880 MHz / 1930-1990 MHz 41.7dBm
CH5 WIFI, 2.4G 2400-2485 MHz 41.7dBm
Optional LTE800 790-821 MHz 41.7dBm
CH1 GPS L1 1570-1580 MHz 41.7dBm
CH6 LTE 2600 2620-2690 MHz 41.7dBm
  • Power Supply: AC220V, DC24V
  • Total Output Power: 90 Watt
  • Power Consumption: 300 Watt
  • Weight: 15 Kg
  • Size (length × width × height): 320×120×430 mm
  • Humidity: 30%-95%
  • Running Temperature: -20℃ to +55℃
  • Jammer Module Number: 6
  • Cooling System: Systematic Smart Cooling System
  • System Protection: VSWR, Over-voltage
  • Jamming Source: Frequency Scan Technology
  • Antenna Type: High Gain Omni-directional Antennas
  • Number of Antennas: 6
  • Inside Battery: 24V DC, 2 hours
  • Jamming Range: 20-120m according to signal density of mobile network
Applications
  • Prevent remote controlled improvised explosive devices from being activated and stop terrorist attacks
  • Protect explosives handling experts
  • Protect important places such as bus/train stations, plazas, schools, mass gatherings, stadiums, etc.
  • Risk mitigation and explosives removal in specified spots
  • Used for VVIP convoy, anti-terrorism, riot control, etc.
  • Used for border control, etc.
